What is a refrigerated air dryer? Complete Guide for Industrial Air Systems
In industrial environments, compressed air is often called the “fourth utility” after electricity, water, and gas. However, one major challenge in compressed air systems is moisture contamination.
This is where a refrigerated air dryer plays a critical role.
In this complete guide, we’ll explain:
What a refrigerated air dryer is
How it works
Its benefits and features
Industrial applications
How to choose the right one
What is a Refrigerated Air Dryer?
A refrigerated air dryer is a type of compressed air treatment equipment used to remove moisture from compressed air by cooling it to a low temperature.
When air is compressed, it becomes hot and contains a high level of water vapor. If this moisture is not removed, it can cause:
Rust in pipelines
Damage to pneumatic tools
Contamination in production processes
Reduced efficiency of equipment
A refrigerated air dryer solves this problem by cooling the air, condensing moisture, and removing it from the system.

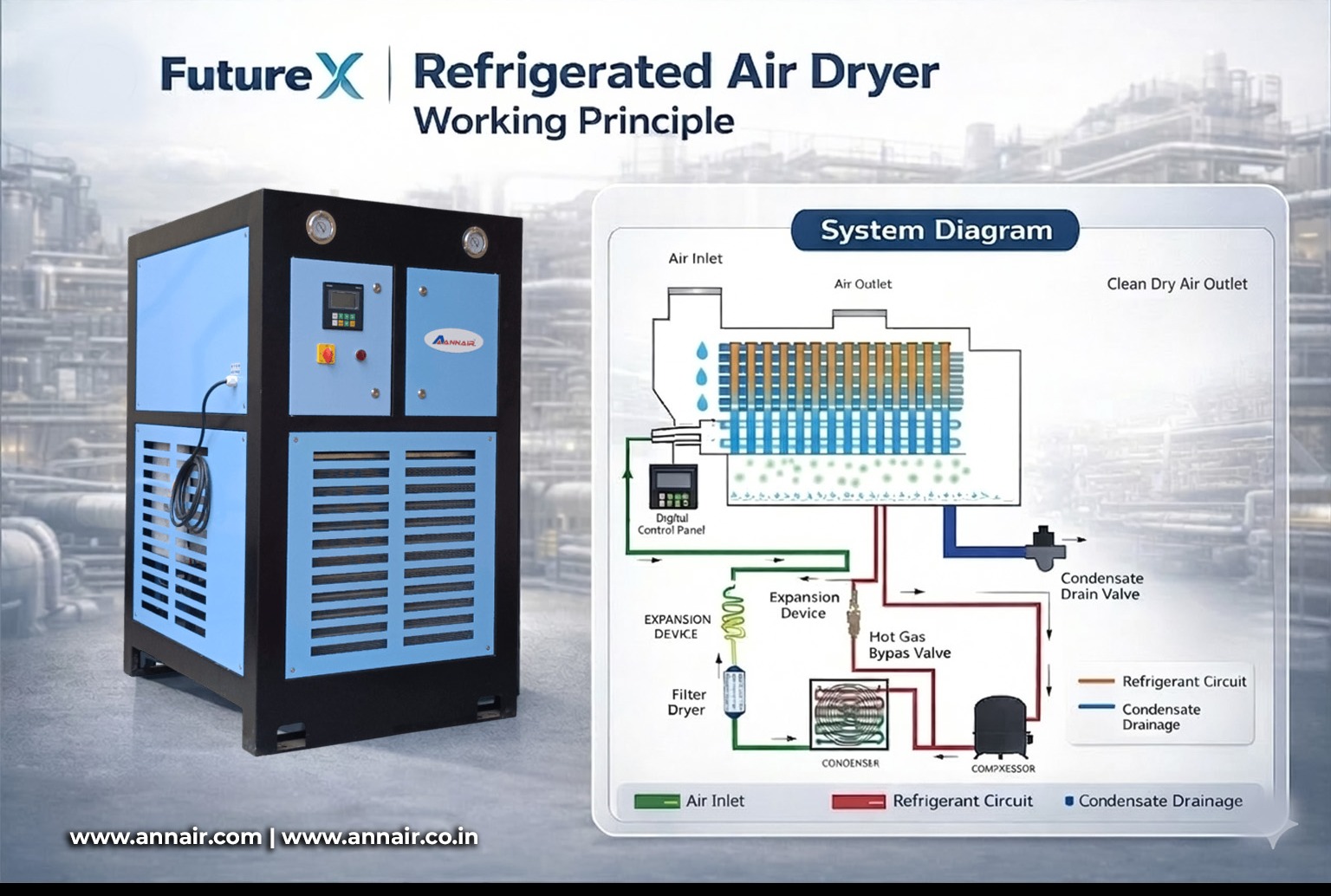

How Does a Refrigerated Air Dryer Work?
The working principle is simple and highly effective. It operates in three main stages:
1. Pre-Cooling of Compressed Air
Hot compressed air enters the dryer and passes through a heat exchanger, where its temperature is reduced before refrigeration.
2. Refrigeration Process
The air is further cooled using a refrigeration system (similar to an air conditioner), typically down to 3°C to 5°C.
At this stage, water vapor condenses into liquid droplets.
3. Moisture Separation & Drainage
The condensed water is separated using a moisture separator and discharged through an automatic drain system.
Finally, dry and clean air is delivered for industrial use.
Why is a Refrigerated Air Dryer Important?
Moisture in compressed air can lead to serious industrial problems. Using a refrigerated air dryer ensures:
Longer equipment life
Reduced maintenance costs
Improved product quality
Better energy efficiency
In industries like pharmaceuticals, food processing, automotive, and manufacturing, dry air is not optional—it’s essential.
Key Features of Refrigerated Air Dryers
Modern systems (like Annair refrigerated air dryers) come with advanced features such as:
Energy-efficient refrigeration system
Digital control panel
Low-pressure drop design
High-performance heat exchangers
Automatic condensate drain
Corrosion-resistant construction
These features ensure consistent performance and long-term reliability.
Benefits of Using a Refrigerated Air Dryer
1. Cost-Effective Solution
More affordable compared to other types of air dryers.
2. Low Maintenance
Requires minimal maintenance compared to desiccant dryers.
3. Reliable Performance
Provides a stable dew point for most industrial applications.
4. Energy Efficient
Designed to consume less power while maintaining high performance.
5. Equipment Protection
Prevents corrosion, scaling, and damage to machinery.
Applications of Refrigerated Air Dryers
Refrigerated air dryers are widely used in:
Manufacturing plants
Automotive workshops
Textile industries
Food & beverage processing
Pharmaceutical industries
Packaging units
Plastic and injection molding
👉 Any industry using compressed air can benefit from a refrigerated air dryer.
Refrigerated Air Dryer vs Desiccant Air Dryer
Feature | Refrigerated Air Dryer | Desiccant Air Dryer |
|---|---|---|
Dew Point | +3°C to +5°C | Up to -40°C |
Cost | Lower | Higher |
Maintenance | Low | Moderate |
Application | General industrial use | Critical & sensitive processes |
For most industrial applications, a refrigerated air dryer is the most cost-effective choice.
How to Choose the Right Refrigerated Air Dryer?
When selecting a dryer, consider:
Required airflow (CFM)
Operating pressure
Ambient temperature
Desired dew point
Energy efficiency
Brand reliability (e.g., Annair)
Choosing the correct size and specifications ensures optimal performance and energy savings.
Conclusion
A refrigerated air dryer is an essential component of any industrial compressed air system. It effectively removes moisture, protects equipment, and ensures smooth operations.
If you are running an industrial setup, investing in a high-quality refrigerated air dryer can significantly improve efficiency and reduce long-term costs.
